Thermal fluid energy machines Lab Equipment
Steam turbine
Steam generator
Laboratory scale gas-fired steam generator for wet or superheated steam; integrated condenser

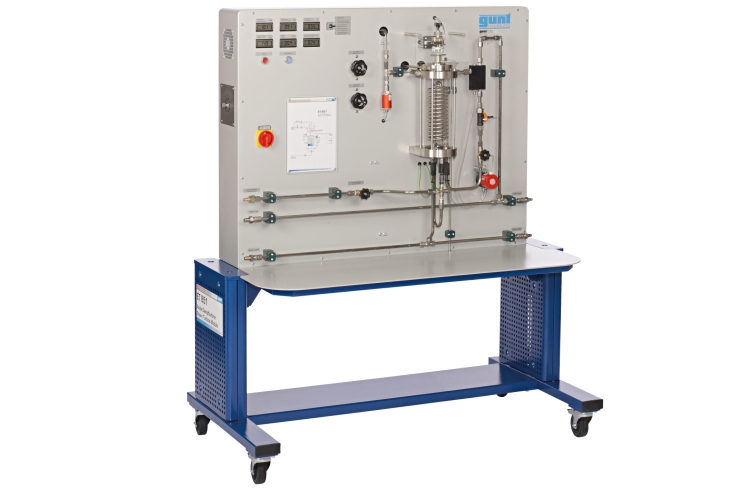

Axial steam turbine
Single-stage steam turbine with power output measurement; steam supply via ET 850
Compressors

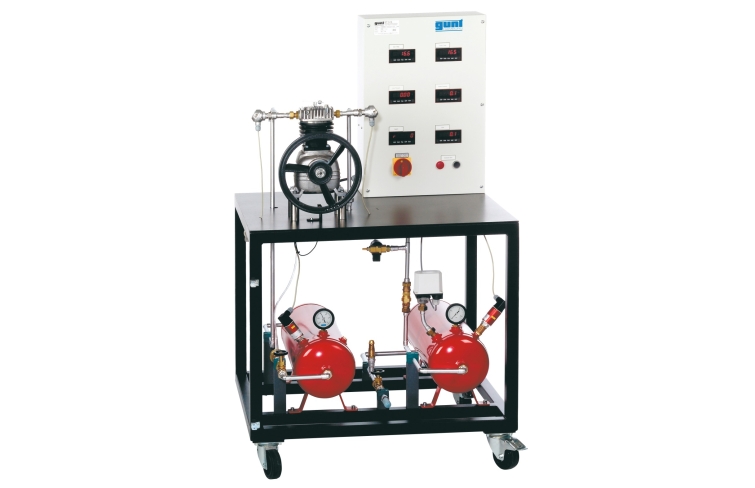

Single-stage piston compressor
Investigations on an air compressor including the determination of the mechanical power consumption

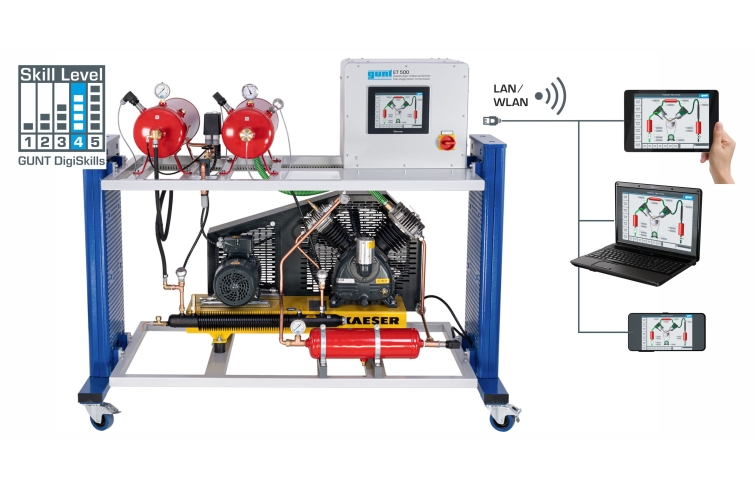

Two-stage piston compressor
Recording the characteristic of an industrial two-stage compressor
Combustion engines

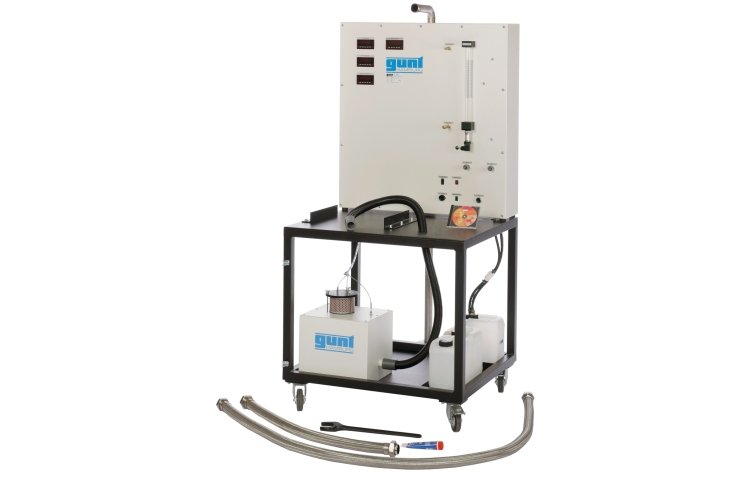

Modular test stand for single-cylinder engines, 3kW
Test stand for the mounting and investigation of the characteristics of prepared single cylinder engines

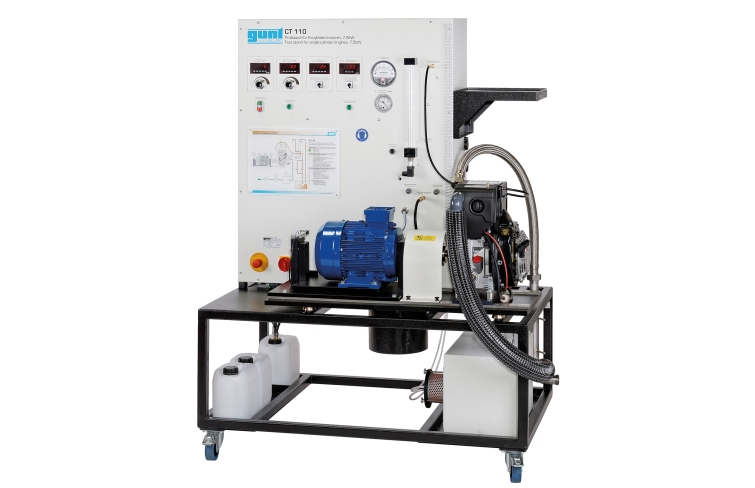

Test stand for single-cylinder engines, 7,5kW
Test stand for the mounting and investigation of the characteristics of prepared two-stroke and four-stroke engines

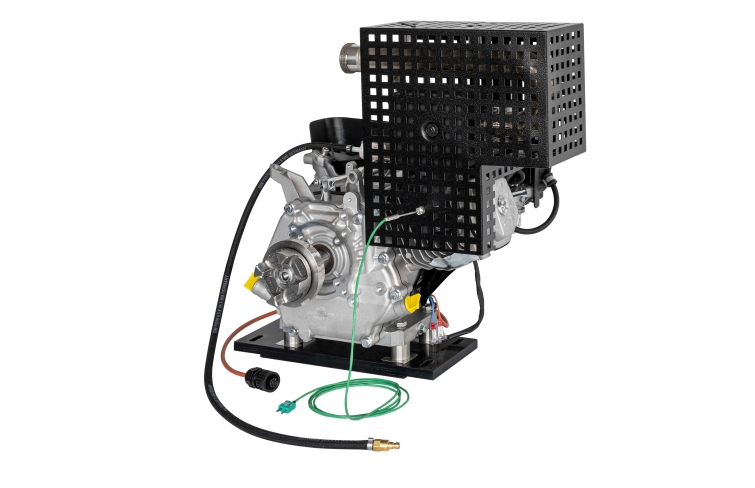

Test stand for single-cylinder engines, 7,5kW
Test stand for the mounting and investigation of the characteristics of prepared two-stroke and four-stroke engines

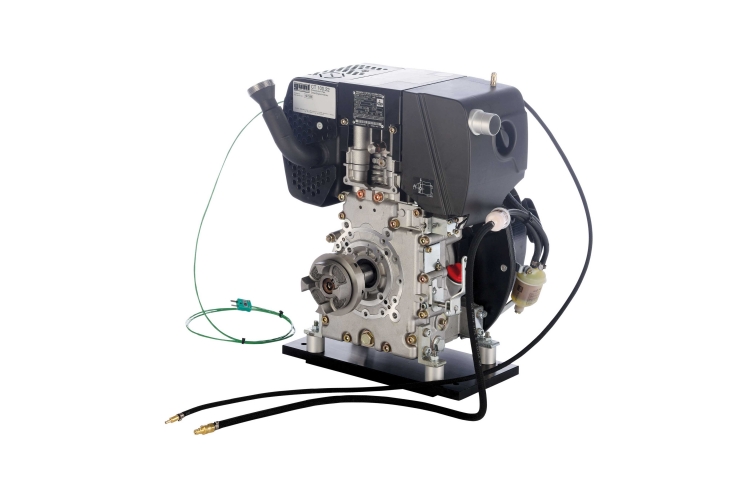

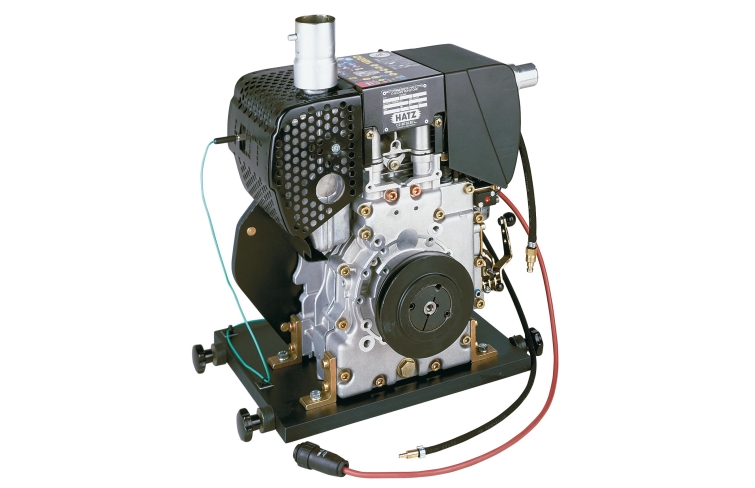

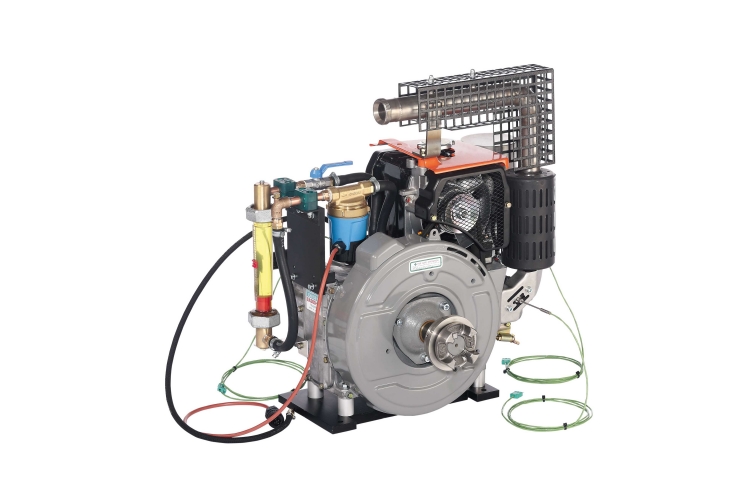

Water-cooled fourstroke diesel engine
Water-cooled four-stroke diesel engine using the swirl chamber principle
Steam engine

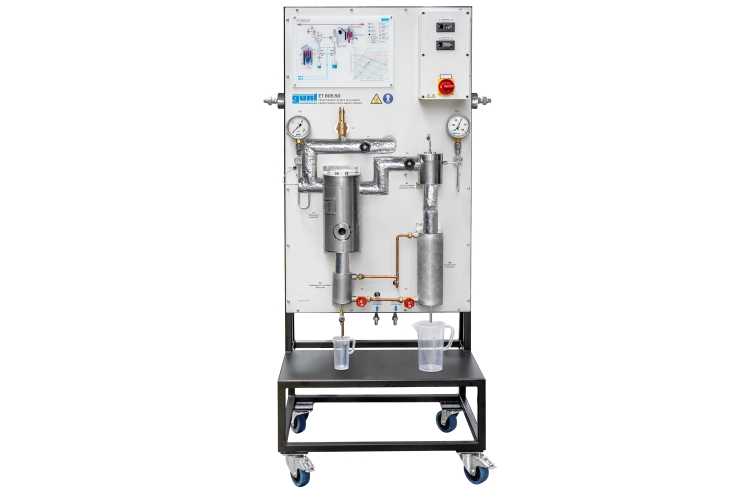

Determination of the vapour content
Determining the quality of a twophase liquid-vapour mixture
